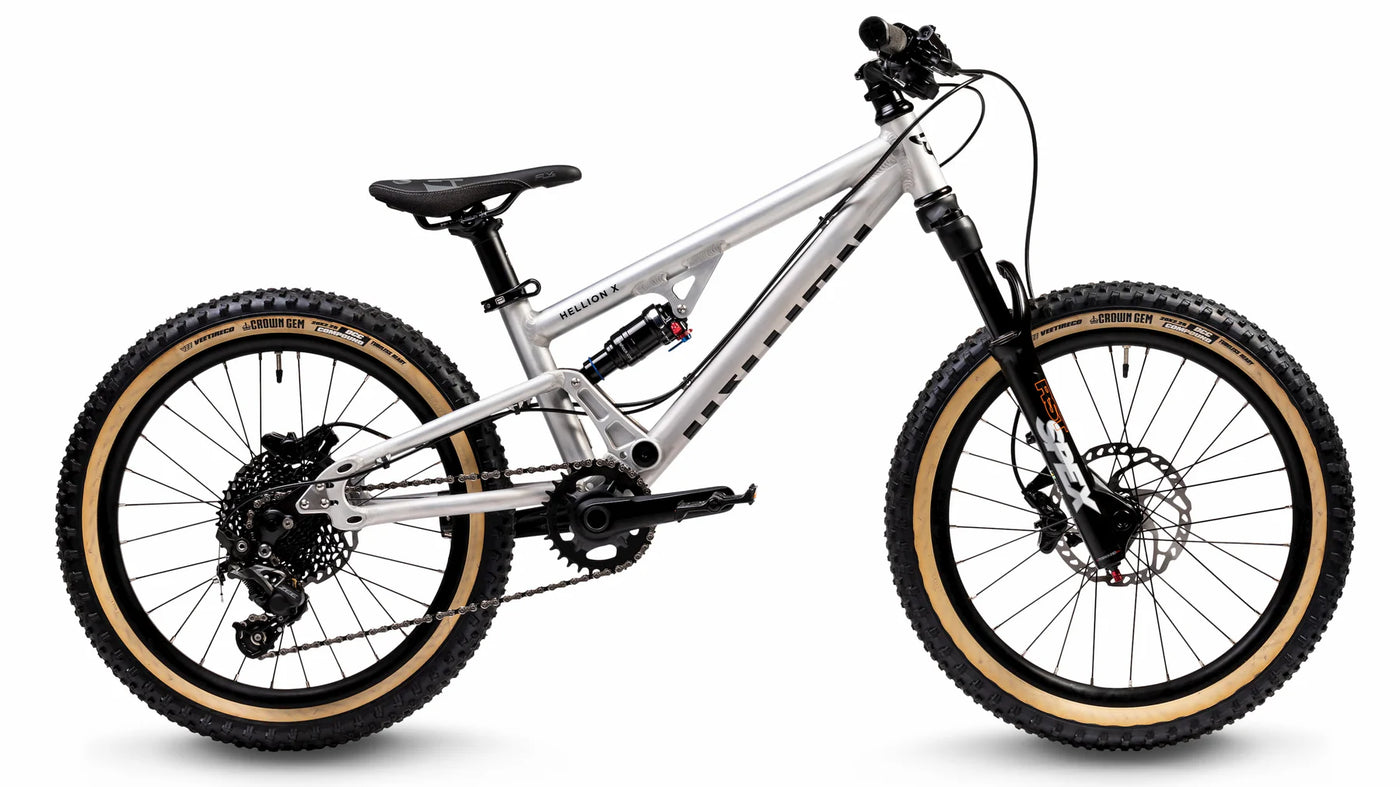

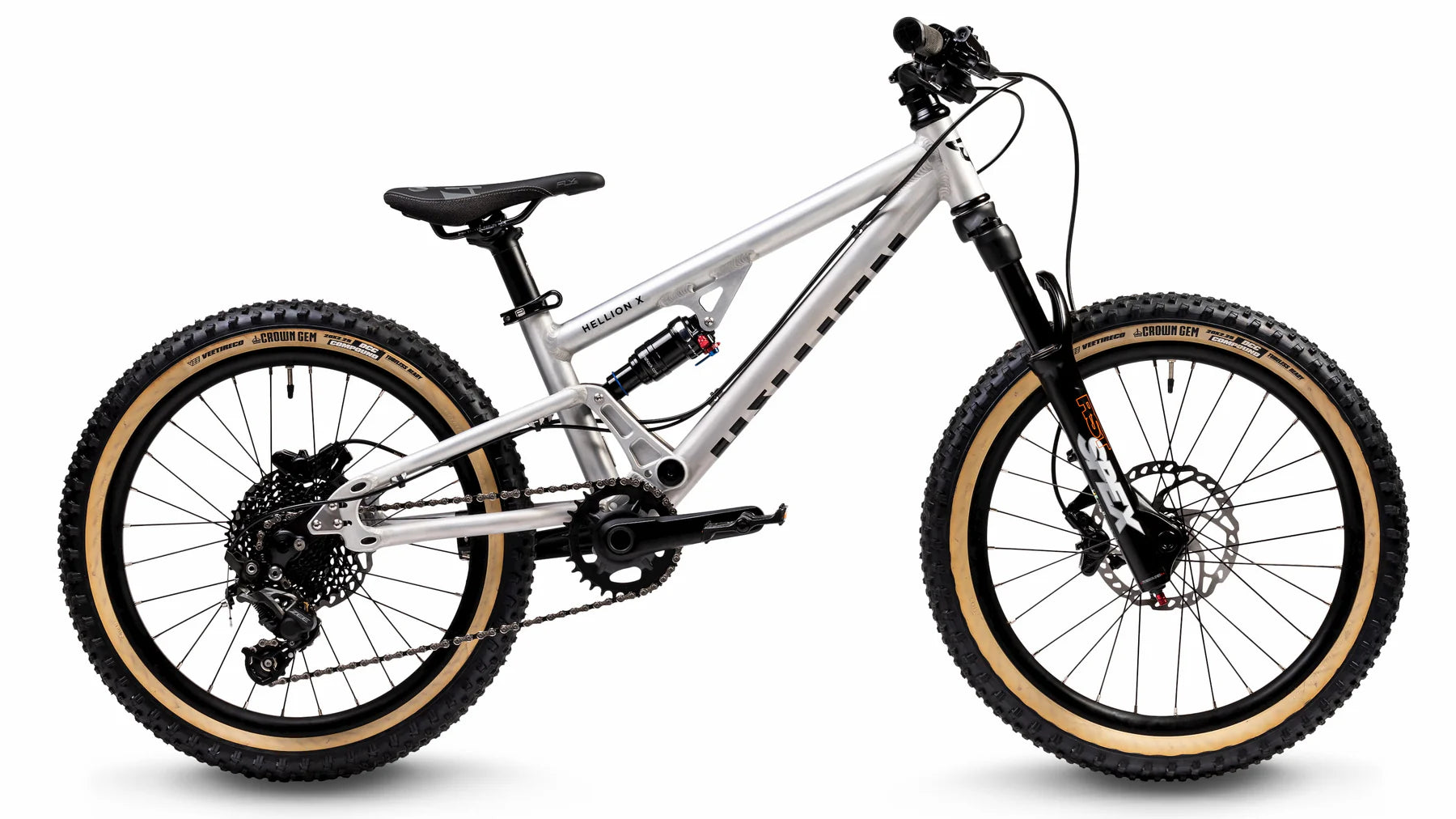

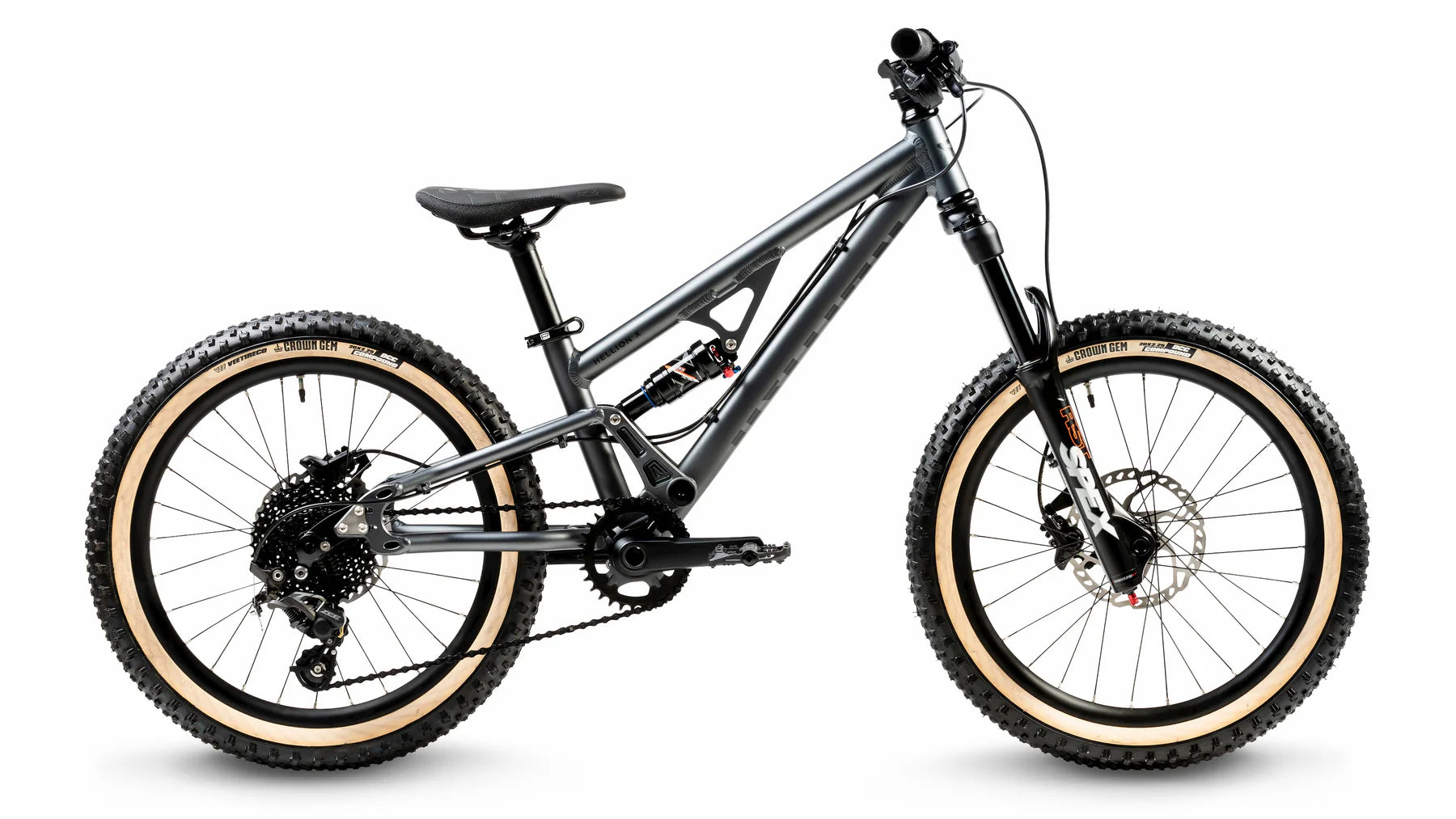

What the Hellion ?!
A 20” full suspension trail bike that’s comfortable on any terrain, from dirt jumps to single track and the junior circuit. Designed for 5-8 year olds, yet specced for a pro. It's a lean, mean MTB machine worthy of any Grom, on any trail.
Specifications
| Standover Height |
53cm |
| Frame |
Butted Alloy Frame, 95mm Travel |
| Rear Stock |
DNM AO-38RC, 152X25.4mm Rebound Adjust, Pedal Platform |
| Fork |
RST SPEX 100mm Travel, 15mm Bolt Thru Axle |
| Steerer |
Tube AL6061 |
| Cranks |
Samox 127mm Direct Mount |
| Pedals |
SDG Slater 90 Pedals, Black |
| Bottom Bracket |
Samox External Cup, Threaded, Sealed Cartridge Bearing |
| Rims |
20 X 28H Double Walled AL6061, Pinned, Tubeless Compatible |
| Rear Hub |
CNC'D Straight Pull AL6061, 12x142mm Thru Axle |
| Front Hub |
CNC'D Straight Pull AL6061, 15x100mm Thru Axle |
| Axles |
Thru Axles AL7075, 15mm Front, 12X142mm Rear (1.0P) |
| Chain |
KMC X10 |
| Chainring |
Samox Offset Narrow Wide, Steel, 30T |
| Weight |
10.15kg W/O Pedals |
| Shifter |
SRAM GX Trigger RH 10SP |
| Rear Cassette |
SRAM PG1020 11-36T, 10SP |
| Brakes |
Shimano DEORE BR-MT500, 160mm RT66 Rotors |
| Levels |
Shimano DEORE BL-MT501 |
| Front Tyre |
VEE Crown Gem Skinwall 20x2.25", 72TPI Folding, TR |
| Rear Tyre |
VEE Crown Gem Skinwall 20x2.25", 72TPI Folding, TR |
| Headset |
Early Rider Conventional Headset, 1 1/8" Cartridge Bearing |
| Stem |
Ritchey OS Forged AL6061, 35mm Reach |
| Bars |
560mm Ritchey OS Double Butted AL6061, 18mm Rise |
| Grips |
Early Rider Lock On Kraton 90mm |
| Seat Post |
Ritchey, 30.9mm x 225mm, AL2014 |
| Saddle |
SDG Fly JR, Black |
| Seat Clamp |
Ritchey QR, 34.9mm |
| Derailleur |
SRAM GX 10SPD Short Cage |

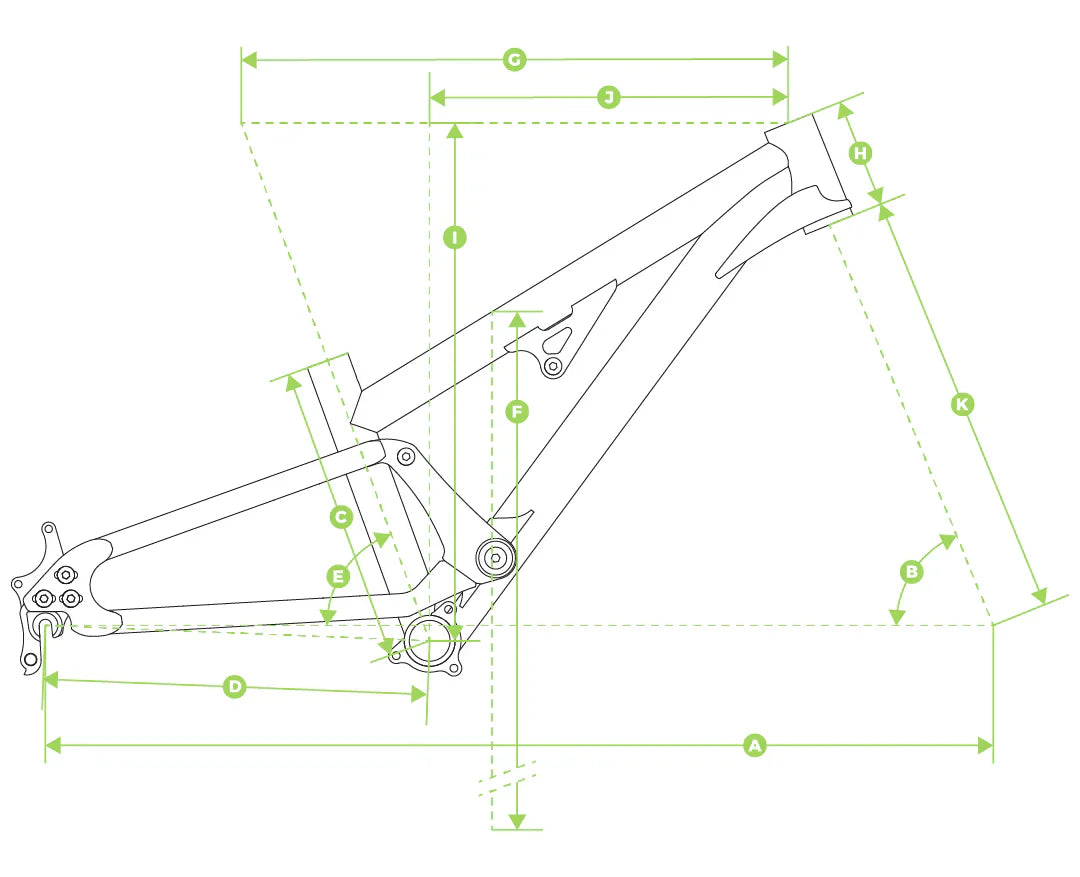

Hellion Sizing
|
MODEL
|
MINIMUM INSIDE
LEG HEIGHT
|
MINIMUM
SEAT HEIGHT
|
MAXIMUM
SEAT HEIGHT
|
AGE |
|
Hellion X20
|
53cm / 21" |
54cm / 21 1/4" |
66cm / 26" |
4- 8 |
|
Hellion X24
|
65cm / 25 3/4" |
70cm / 27 1/2" |
83cm / 32 3/4" |
7.5 - 11 |
